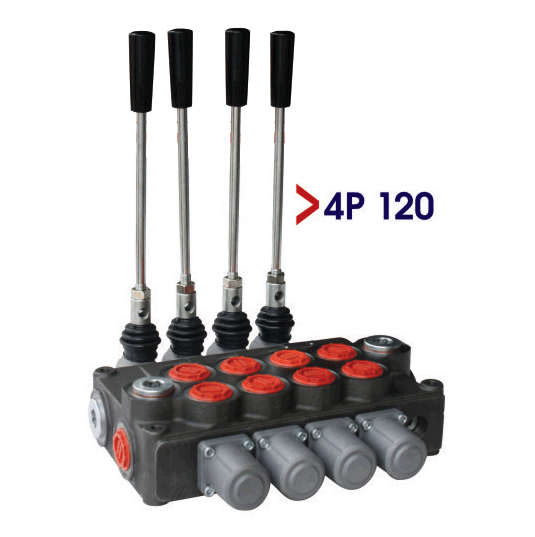

P120 Monoblock Directional Control Spool Valve

The hydraulic distributor P120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems of mobile machines (electrical and diesel forklifts, excavators, auto-cranes, etc.).


The hydraulic distributor P120 is a mono-bloc type with manual control. The body is made of cast iron EN-GJL300, and the spools are made of carburized steel with hard chrome plating.


The distributor is fixed with 3 bolts M10.

Ambient temperature 40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 50 bar
Nominal flow 120 l/min
Leakage(A,B-T) 30cm3/min at 120bar
Spool stroke 10 mm,L12+/-10/6
Actuating force 300 N
Modification/ Spools with 2 nos
